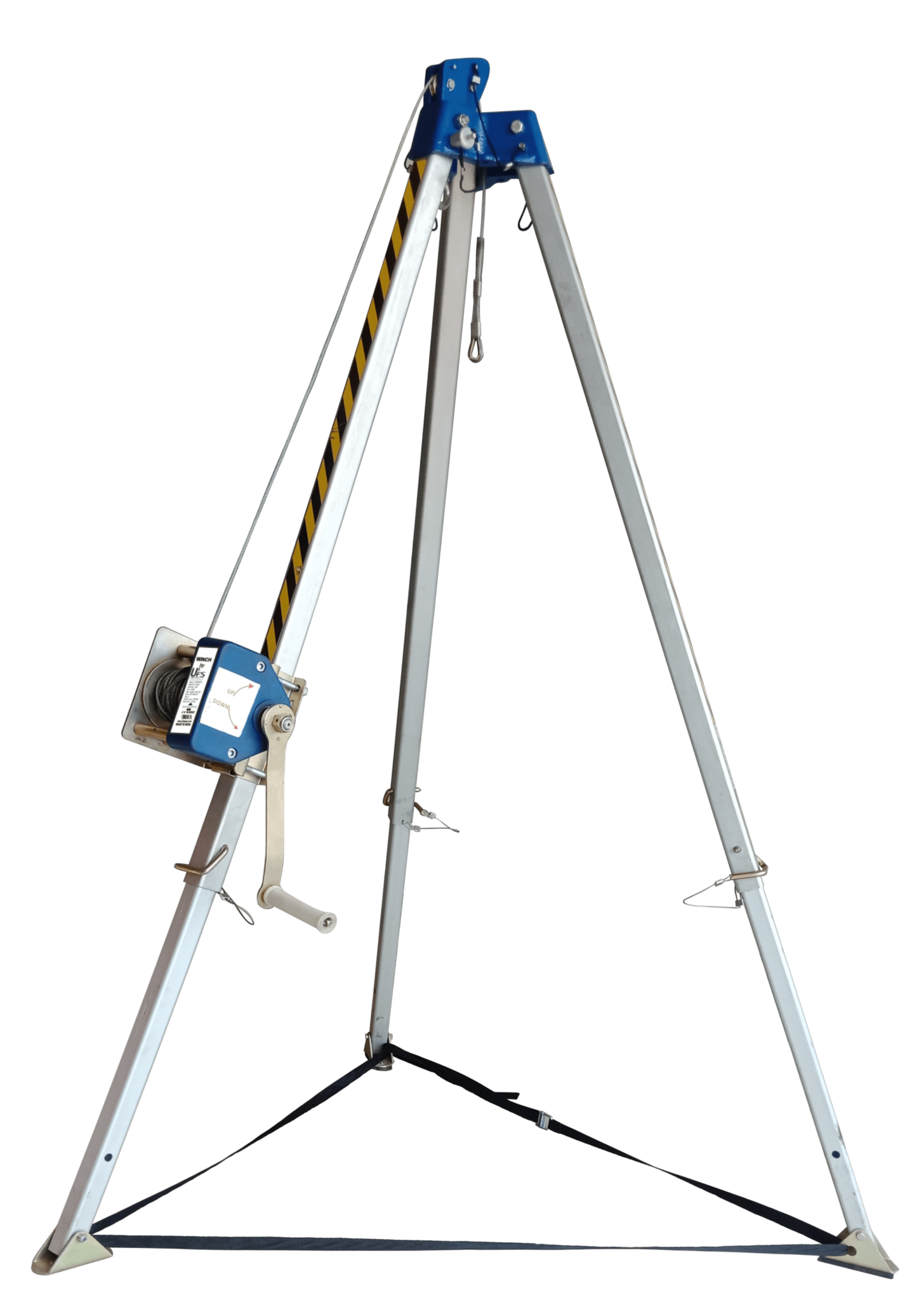

UT TP-700
CONFINED SPACE EQUIPMENTS
Features
- For access in confined space.
- With two mounted pulleys at the head of the Tripod in the prolongation of the main leg for passing cable.
- It allows making configuration with one winch and one Self Retractable block with with hoisting facility with UT-16000(10).
- Having two auxiliary eye bolts as attachment points.
- Aluminum alloy cast head, legs in aluminium.
- Steel support-shoes provided with rubber sole to increase friction and impart more stability.
- Strength of anchorage point greater than 12 kN.
- Every Tripod is provided with inbuilt fixture for attaching our winch UT-WN710 (can be supply without this fixture on special request).
- Every Tripod is Provided with tripod Bag .
Certification
COMPLIANCE TO : EN 795:2012 TYPE B
SPECIALITY
UFS Tripod is one such product that can be used for easy access by a worker into confined spaces such as Man-holes, Tanks, etc. it provides a means of controlled ascent and descent, as well as protection from fall, should the depth of the space required it.
Tripod Head : Robust Aluminium Alloy cast head with two integral pulleys for smooth operation of the Winch.
Stainless Steel Eye Bolts : Tested to sustain a force of more than 12 kN static force as per EN 795 CLASS B.
Telescopic Legs : Fully Adjustable Aluminium Telescopic Legs for use on level surfaces.
Sturdy Rubber Shoes : Sturdy Rubber Shoes provided With High Abrasion Resistant Sole to increase friction and impart more stability to the Tripod.
TECHNICAL SNAPSHOT
| Part code | Length | Specification | Weight(kgs) | Max. Load Capacity | Compliance to |
|---|---|---|---|---|---|
|
UT-TP700 |
7ft. |
Fully adjustable telescopic legs, adjustable height form 1.15m to 2.15m. Wheelbase (Footprint): 1.5m diameter. |
13kg. |
500kgs. |
EN 795:2012 TYPE B |
